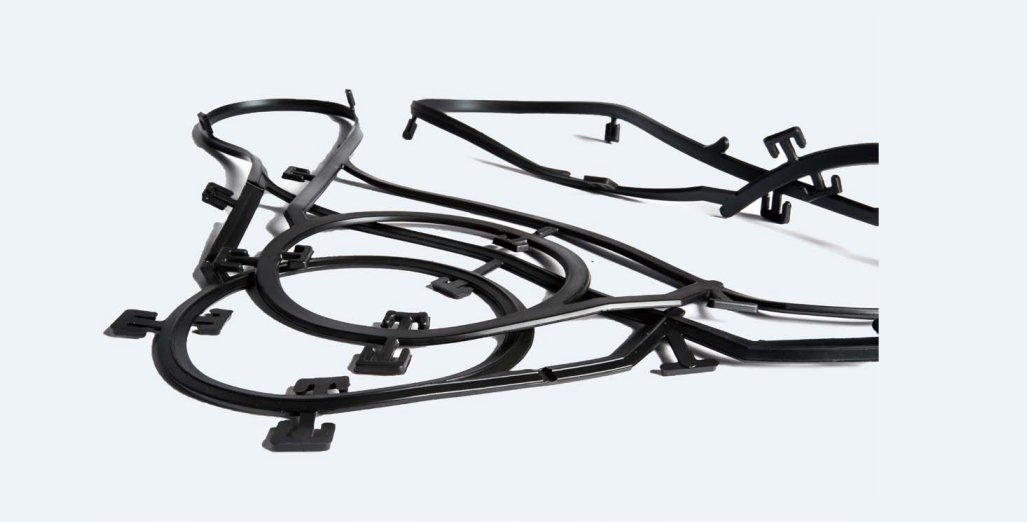

Within the core component of industrial heat exchange systems—the plate heat exchanger—lies a part that seems unassuming yet critical. Like the sealing ring of a precision instrument, it quietly safeguards the efficient operation and safety of the equipment. This is the plate heat exchanger gasket. This elastic component, hidden between metal plates, lacks the shimmer of metal but stands as the "invisible linchpin" that determines a heat exchanger’s performance, thanks to its unique properties.

The plate heat exchanger works by enabling cold and hot media to flow on either side of stacked metal plates, facilitating heat transfer through their tight contact. The primary role of the gasket is to block leakage paths for the media. In high-pressure environments with extreme temperature fluctuations, the gasket must cling tightly to the sealing grooves along the edges of the plates. It endures both the pressure of the media and the thermal expansion and contraction from temperature changes; even a small flaw can cause leaks, reducing efficiency and posing safety risks.

Choosing the right gasket starts with matching the material to the media. Industrial heat exchange systems handle vastly different media: highly corrosive acids and alkalis, high-temperature high-pressure steam, or fluids with oils and organic solvents. Gasket materials are tailored accordingly: oil-resistant variants suit lubricant heat exchange in manufacturing, acid-alkali-resistant ones are vital for chemical industries, and high-temperature-resistant materials excel in food processing or pharmaceuticals, where sterilization demands heat stability. A mismatch between material and media can lead to rapid swelling, hardening, or cracking, shortening the heat exchanger’s lifespan.

Next, elasticity and pressure resistance are a gasket’s defining strengths. Quality gaskets fit easily into sealing grooves during installation, deforming uniformly as plates are tightened to form a seamless seal. Over long-term use, even after tens of thousands of temperature cycles, they retain their resilience, preventing seal failure from aging. Poor-quality gaskets, however, often start with decent elasticity but lose toughness quickly under repeated thermal stress, turning brittle or loose—a "time bomb" for system breakdowns.

Dimensional precision is also key. Plate heat exchangers come with diverse plate designs, each with unique sealing groove widths, depths, and corner radii. A gasket’s cross-section and shape must align perfectly with these. Even a 0.1-millimeter deviation can cause uneven sealing pressure or damage during installation, leaving leak risks.

For users, the goal isn’t to chase high prices but to choose based on needs. First, define the media’s composition, temperature, and pressure. Then consult suppliers for suitable materials and sizes. Inspect gaskets for smooth, bubble-free surfaces and uniform cross-sections; request material test reports if needed.

Though small, the gasket is the "health guardian" of the plate heat exchanger. Its quality directly impacts energy efficiency, safety, and maintenance costs. By valuing this "invisible guardian," we ensure plate heat exchangers operate reliably in industrial settings, supporting efficient production.
