Function and Importance of Heat Exchanger Nozzles

Heat exchanger nozzles are critical interfaces between the equipment and external pipelines, with the core function of ensuring smooth inflow and outflow of fluids to maintain the continuous operation of the heat exchange process. Whether in large-scale heat exchange equipment in industrial fields (such as petrochemical and power industries) or small devices like household water heaters, nozzles directly affect the continuity of system operation. Once blockage or leakage occurs, it may lead to reduced production efficiency, safety accidents, or interruption of domestic water supply, so their importance cannot be ignored.

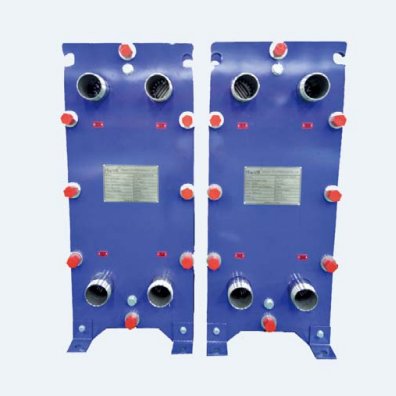

Common Types and Characteristics of Heat Exchanger Nozzles

Flange-Connected Nozzles

The most widely used type, which achieves connection through flange plates and bolts. Its advantages include convenient installation and disassembly, facilitating maintenance and overhaul of heat exchangers; excellent sealing performance, suitable for high-pressure sealing scenarios involving flammable, explosive, or toxic fluids. The disadvantages are high manufacturing costs (requiring additional connectors) and potential impact on sealing effect if the bolt tightening torque is not properly controlled.

Threaded Nozzles

Connected by screwing the threads of the interface and pipeline, suitable for small-diameter, low-pressure systems (such as laboratory equipment and household appliances). They are characterized by simple connection and low cost, but have weak sealing performance. They are prone to loosening and leakage under high-temperature, high-pressure, or vibrating working conditions, and repeated disassembly can cause thread wear.

Welded Nozzles

The nozzles are welded integrally with the heat exchanger and pipelines. They have high connection strength and good sealing performance, and can withstand high temperatures, high pressures, and highly corrosive media (such as heat exchange of high-temperature fluids in oil refineries). The shortcomings are difficult disassembly and maintenance (needing to damage the welded parts) and high requirements for welding processes and personnel skills.

Design Key Points of Heat Exchanger Nozzles

Dimension Design

The nozzle diameter should be determined based on the heat exchanger's processing flow rate and fluid properties: a larger diameter is required for high flow rates or high-viscosity fluids to reduce pressure loss, while a slightly smaller diameter can be used for gaseous media. At the same time, the nozzle length should be reasonably designed to balance the convenience of pipeline connection and the layout of the internal structure of the equipment.

Material Selection

The core considerations include fluid compatibility (e.g., titanium alloy for seawater heat exchange to prevent corrosion), strength, and high-temperature resistance (e.g., alloy steel for high-temperature steam systems). Additionally, the material should be easy to process (such as welding and cutting) to ensure the service life of the nozzles and the safety of the equipment.

Installation and Maintenance of Heat Exchanger Nozzles

Installation Precautions

It is necessary to ensure accurate alignment of the centerlines of the nozzles and pipelines to avoid increased fluid resistance or uneven stress at the connection; for flange connections, bolts should be tightened in a diagonal sequence and the torque should be controlled; for welded connections, suitable processes and materials should be selected to prevent defects such as air holes and cracks.

Daily Maintenance Key Points

Regularly inspect the appearance of the nozzles to check for leakage traces; pay attention to thread loosening for threaded connections and increase the inspection frequency under vibrating working conditions; regularly clean the interior of the nozzles to prevent blockage caused by impurity accumulation (such as sediment deposition in circulating water systems).

Fault Troubleshooting and Repair

In case of leakage, for flange connections, gaskets can be replaced or bolts can be tightened; for welded connections, non-destructive testing should be used to locate weld defects before repair welding. For blockage, flushing or purging can be tried first, and disassembly inspection or replacement is required in severe cases. For cracked or deformed nozzles, repair or replacement should be carried out according to the damage degree, and performance testing is necessary after repair to ensure compliance with requirements.
