In the field of efficient heat transfer, plate heat exchangers and plate-shell heat exchangers are often mentioned. Their names are similar, and both are used to achieve heat exchange, just like the “twin brothers” in the heat exchange field. In fact, there are many differences between the two in terms of structural design, performance characteristics, and application scenarios. Understanding these differences can help us make more appropriate equipment choices under different working conditions. Let's take a closer look.

Structural Design: The Collision of Delicacy and Sturdiness

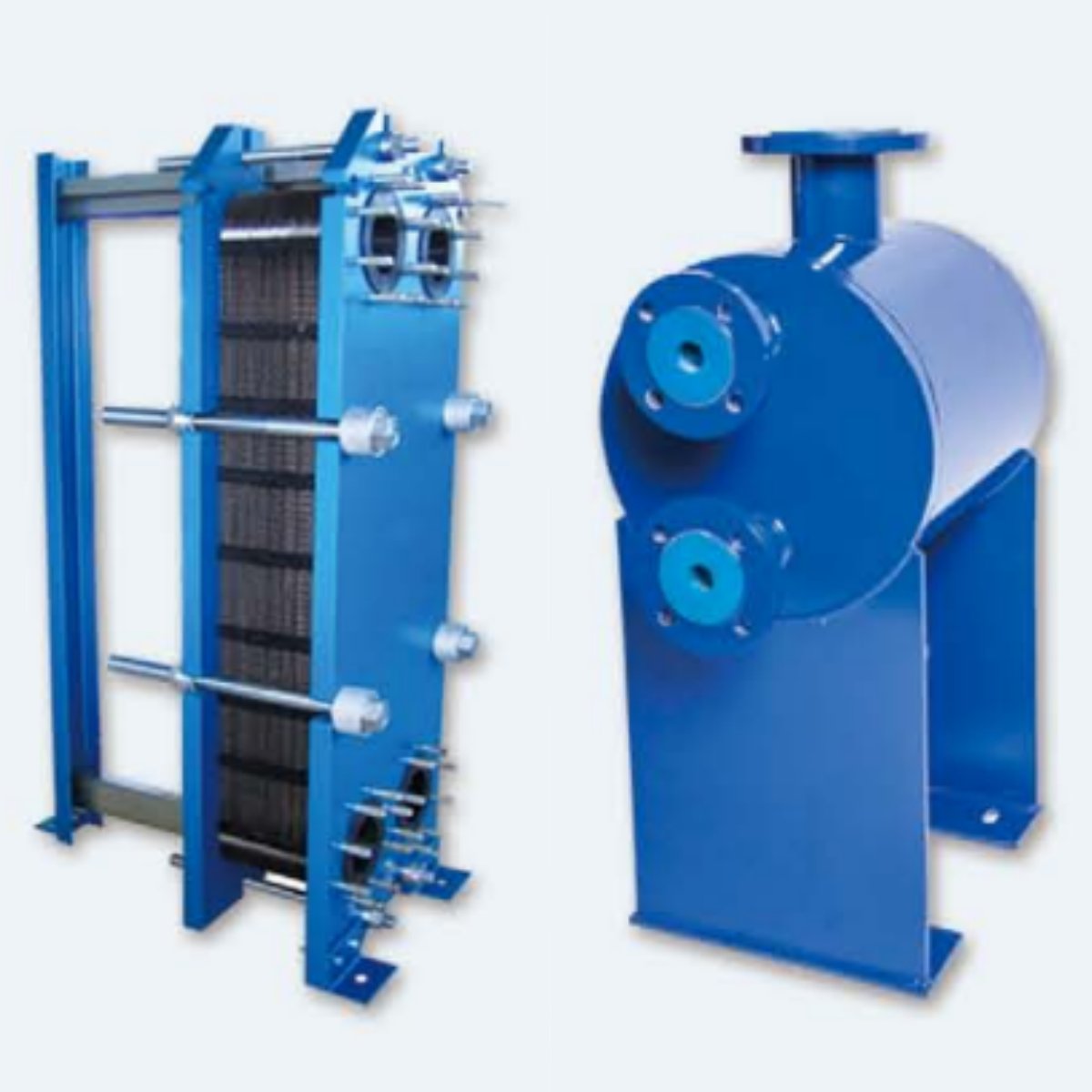

The structure of a plate heat exchanger is like a “layered cake,” composed of a large number of thin metal plates stacked together. The plates are separated by gaskets to form independent fluid channels. The surfaces of these plates are specially designed with corrugations, chevron patterns, or other shapes, which greatly increase the heat transfer area and cause the fluid to form turbulence in the channels, improving the heat transfer efficiency. Moreover, its structure is relatively simple, making disassembly and assembly easy, which is convenient for cleaning and maintenance.

The plate-shell heat exchanger combines the characteristics of plate heat exchangers and shell-and-tube heat exchangers, more like a “steel warrior.” It uses a plate bundle as the heat transfer element. The plate bundle is composed of metal plates welded together to form closed channels. The plate bundle is enclosed in a sturdy shell. This structure enables the plate-shell heat exchanger to withstand higher pressures and temperatures, and the welded structure reduces the risk of leakage. Compared with the sealing method of plate heat exchangers relying on gaskets, it has a significant improvement in sealing performance.

Performance: The Choice between High Efficiency and Stability

In terms of heat transfer efficiency, the plate heat exchanger is the “efficiency champion” thanks to its unique plate design and large heat transfer area. Since the plates are very thin, the thermal resistance is small. Coupled with the turbulent state of the fluid in the corrugated channels, its heat transfer coefficient is several times higher than that of traditional shell-and-tube heat exchangers. In scenarios where space requirements are strict and rapid and efficient heat exchange is needed, such as in central heating systems and the pasteurization process of the food and beverage industry, the plate heat exchanger can quickly complete heat exchange to meet production needs.

Although the plate-shell heat exchanger is slightly inferior to the plate heat exchanger in heat transfer efficiency, it excels in stable performance and strong adaptability. It can withstand high pressures and temperatures and is suitable for complex working conditions such as high temperature, high pressure, high viscosity, and the presence of particulate impurities. For example, in the petrochemical industry, when handling high-temperature and high-pressure oil products and fluids with corrosive media, the plate-shell heat exchanger can still operate stably and ensure the normal heat exchange process, which is difficult for plate heat exchangers to achieve.

Application Scenarios: Stages Where Each Shows Its Strength

The different structural and performance characteristics determine that the two have different focuses in application scenarios. With its characteristics of high efficiency, compactness, and easy maintenance, the plate heat exchanger is widely used in civil and light industrial fields. In central air-conditioning systems, it can quickly achieve heat exchange between refrigerants and air or water, providing a comfortable indoor temperature. In dairy production, it can quickly heat and cool milk to ensure product quality and production efficiency.

The plate-shell heat exchanger shines in the industrial field, especially in industries such as petrochemicals, electricity, and metallurgy. In oil refineries, it is used for key processes such as preheating of crude oil and heat recovery of fractionation towers. In nuclear power plants, it undertakes the task of heat exchange between the coolant and the secondary side medium, working stably in extreme environments of high temperature, high pressure, and strong radiation, ensuring the stable operation of industrial production.

Plate heat exchangers and plate-shell heat exchangers are like two different “tools,” each playing an irreplaceable role in their respective fields of expertise. When you need an efficient and flexible heat exchange solution, the plate heat exchanger is the best choice. When facing complex and harsh working conditions, the plate-shell heat exchanger can take on the important task. If you'd like to learn more about heat exchangers or have related technical questions, feel free to contact us!
