In the modern industrial system, there are many unassuming yet crucial components, and the tubesheet is one of them. Whether you're enjoying the cool air from an air conditioner or boiling water with a kettle, you have this unsung hero to thank. This metal plate hidden inside equipment—what makes it so special? Let’s uncover its mysteries together.

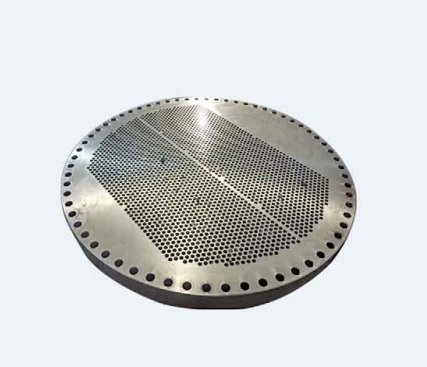

A tubesheet may look like a metal disc with regularly spaced holes, but its role is far from trivial. Simply put, a tubesheet is a core component in shell-and-tube heat exchangers, boilers, and other equipment. Its primary functions are to fix tube bundles and separate different fluid zones. Imagine a large shell-and-tube heat exchanger: tens of thousands of small tubes need to be neatly arranged, while ensuring that hot and cold fluids do not mix. In this scenario, the tubesheet acts like a meticulous "commander," securing each tube in its correct position and enabling them to efficiently exchange heat.

The tubesheet serves three main functions:

Fixing Tube Bundles: During operation, tube bundles in heat exchange equipment face pressure from fluid flow, vibration, and thermal stress caused by temperature changes. The tubesheet provides stable support through welding, expansion, or other connection methods, ensuring the tubes do not shift or deform under complex conditions.

Separating Fluids: The tubesheet divides the internal space of equipment into a "tube side" and a "shell side," allowing different fluids to flow through their respective channels without interference. This enables efficient heat transfer or material separation.

Sealing Function: The sealing performance between the tubesheet, tube bundles, and the shell directly impacts the equipment’s operational efficiency and safety. A reliable seal prevents fluid leakage, avoiding energy waste and environmental pollution.

Manufacturing a tubesheet is a complex process with extremely high precision and quality standards:

Material Selection: Depending on the equipment’s working environment and medium (e.g., corrosive fluids, high temperatures), materials like stainless steel, carbon steel, or titanium alloy are chosen to ensure the tubesheet has sufficient strength, corrosion resistance, and heat resistance.

Machining: Hundreds or thousands of holes are precisely drilled into the metal plate using CNC machines. The tolerance for hole size and positioning must be controlled within extremely small margins; even minor errors can affect tube installation and overall equipment performance.

Quality Inspection: After machining, the tubesheet undergoes rigorous testing, including non-destructive testing and pressure testing, to ensure it meets design requirements.

Tubesheets are widely used across industries:

Chemical Industry: In reactors, heat exchangers, and condensers, they facilitate chemical reactions and efficient heat transfer.

Power Industry: In boilers, tubesheets secure heating surface pipes, converting water into high-temperature, high-pressure steam to drive turbines for power generation.

Refrigeration Industry: Condensers and evaporators in air conditioners and refrigerators rely on tubesheets to exchange heat between refrigerants and air/water, enabling cooling.

Other Fields: They are also indispensable in oil refining, food processing, seawater desalination, and more.

As industrial technology advances, tubesheets face new challenges and opportunities:

Higher Performance Demands: The trend toward larger, more efficient equipment requires tubesheets to be more reliable, driving the development of advanced materials and manufacturing processes.

Energy Conservation: The focus on sustainability has led to designs that optimize fluid flow and heat transfer efficiency, reducing energy consumption.

The humble tubesheet, though unseen, plays a pivotal role in industrial production and daily life. Like an invisible guardian, it silently ensures the safe and stable operation of equipment, propelling modern industry forward. The next time you use a device that relies on heat exchange, take a moment to appreciate the precise tubesheet working tirelessly inside to keep you comfortable and connected.
